| Model No. | DT1011T |
|---|---|
| Screen Size | 10.1'' |
| Resolution | 1280*800/1920*1200 IPS |
| CPU | A64/A523/A133/RK3128/RK3288/RK3566/RK3568/RK3399 |
| RAM | 1GB/2GB/4GB |
| ROM | 8GB/16GB/32GB/64GB |
| Color | Black/White |
Professional Factory 10.1″ Smart Interactive Customer Facing Capacitive Touch Feedback Machine WiFi RJ45 Desktop Android Tablet
| Display | Panel | 10.1″ high-definition full view screen | ||||||||||||
| Resolution | 1280×800 (1920×1200 optional) IPS | |||||||||||||
| Viewing angle | 85/85/85/85(L/R/U/D) | |||||||||||||
| Brightness | 300 cd/m2 (500 cd/m2 optional) | |||||||||||||
| Contrast | 1000:1 | |||||||||||||
| Screen scale/Display area | 16：10/ Display area : 216×135mm | |||||||||||||
| System | CPU | A64/A523/A133/RK3128/RK3288/RK3566/RK3568/RK3399 | ||||||||||||
| RAM | 1GB/2GB/4GB | |||||||||||||
| ROM | 8GB/16GB/32GB/64GB | |||||||||||||
| Operation system | Android 6.0/7.1/8.1/9.0/10/11/13 | |||||||||||||
| Touch screen | 10-Point capacitive touch | |||||||||||||
| Network | WIFI | 802.11b/g/n | ||||||||||||
| Ethernet | 100M ethernet (1000M optional) | |||||||||||||
| Bluetooth | BT 5.2 | |||||||||||||
| 4G/5G Cellular network | Optional | |||||||||||||

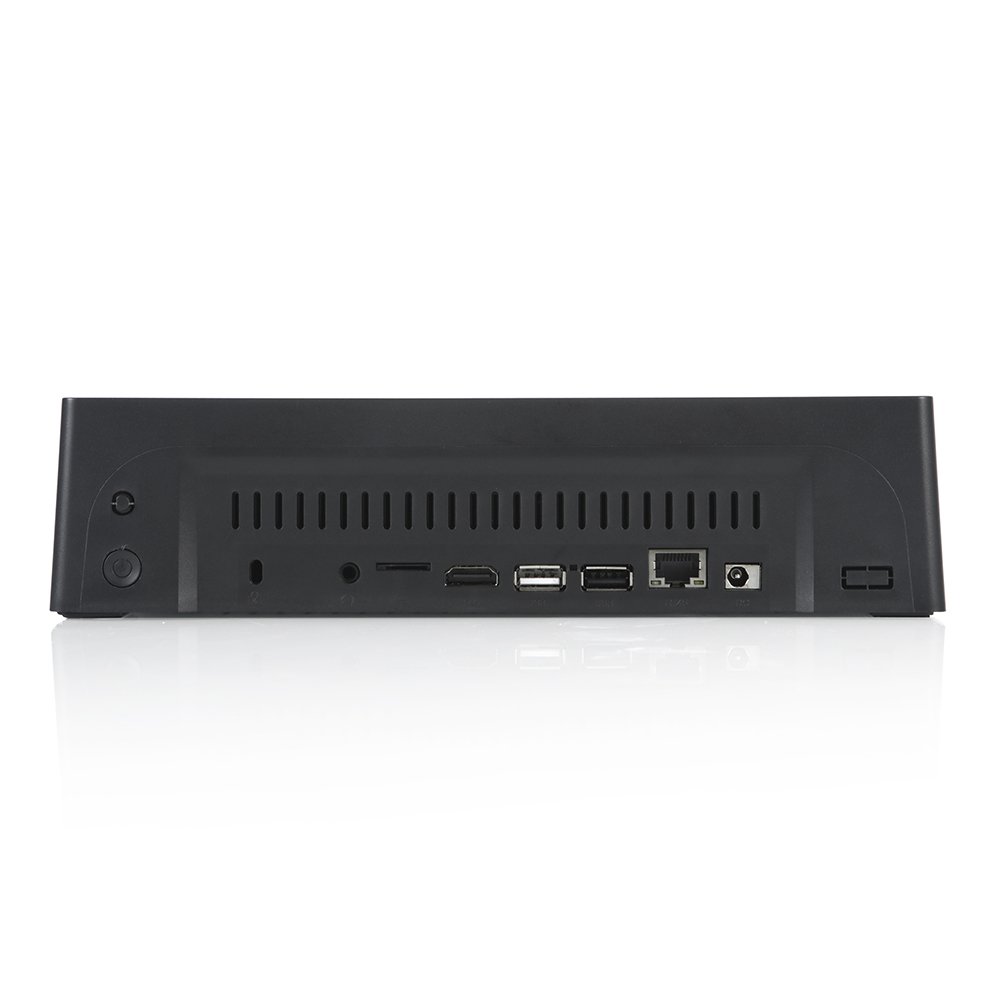

| Interface | TF | TF card slots | ||||||||||||
| USB 2.0 | 1×USB 2.0 interface (support U disk, mouse, keyboard, printer etc) | |||||||||||||
| USB 3.0 | 1×USB 3.0 interface (support U disk, mouse, keyboard, printer etc) | |||||||||||||
| RJ45 | Ethernet interface (POE function Optional) | |||||||||||||
| Earphone | 1×3.5mm headphone Interface | |||||||||||||
| HDMI out | 1xHDMI out | |||||||||||||
| Power | DC power input (5.5×2.1mm) | |||||||||||||
| Multi-Media | Video | Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P) | ||||||||||||
| Audio | Support MP3, WMA, AAC and so on | |||||||||||||
| Picture | JPEG、JPG | |||||||||||||
| Other parameters | Microphone | Optional | ||||||||||||
| Speaker | 2×2W speakers | |||||||||||||
| Camera | Optional | |||||||||||||
| Working temp | 0-50degree | |||||||||||||
| OSD language | Multi-language | |||||||||||||
| Certificates | FCC，CE，ROHS etc. | |||||||||||||
| Accessories | Adapter | One, specifications: 12V/2A | ||||||||||||
| User Manual | yes | |||||||||||||
